Works Performance Shock Eyelet Mounting Bushings
Step-Mounting Bushings | Schmidty Racing



Alternative Views:


Base Price: $22.00


Product Code: ATV-WP-SMB

Click to view another Fitting



Qty:
Description

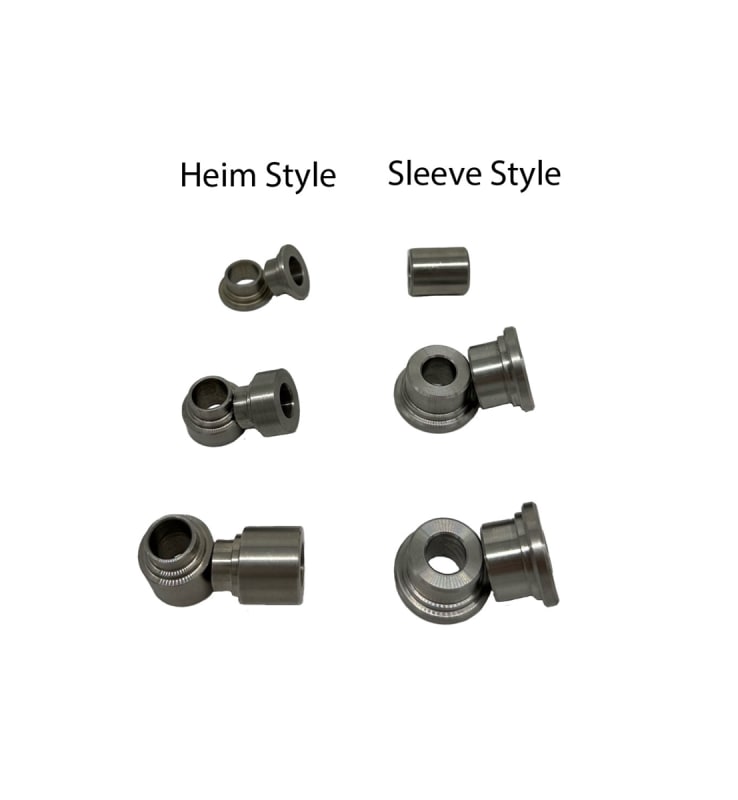

These are stainless steel mounting bushings from Schmidty Racing Suspensions for Works Performance shock eyelets. These mounting bushings are available in different styles ("step-bushing" and "sleeve-style") with options for each. See option descriptions below.


Step-Bushing Options:

    Delrin Sleeve Step-Bushings: These "sleeve" style mounting step-bushings slip / fit into the thin-walled Delrin wear sleeves that are pressed into the shock eyelets. Available mounting widths:
    • 30mm for 10mm bolts
    • 32mm for 10mm bolts

    Heim Bearing Step-Bushings: These "bearing" style mounting step-bushings slip / fit into the heim bearings that are pressed into the shock eyelets. Available mounting widths:
    • 19mm for 10mm bolts (Currently Unavailable)
    • 30mm for 10mm bolts
    • 32mm for 10mm bolts (Currently Unavailable)
    • 45mm for 10mm bolts

    Step-Bushing Sets Include:
    • (2) Step Bushings
    • (2) Replacement Bushing O-Rings
    • * Does not include eyelets or heim bearings

Sleeve-Bushing Options:

    Urethane Sleeve Style: These are mounting sleeve-bushings with 5/8" OD. Sleeve-bushings sold individually. Available mounting widths:
    • 19mm for 10mm bolts
