Walker Evans Threaded Dual Rate Cross-Over Collars
Walker Evans Threaded Dual Rate Cross-Over Collars

Alternative Views:

Base Price: $50.00

Availability: Usually Ships in 24 Hours
Product Code: UT-DRH-CC-WE-2.0-2.5

Choose Collar Size/Gen/Quan.*:

Type: Single (for 1 shock) | Pair (for 2 shocks) | 4-Piece Kit (for 4 shocks)

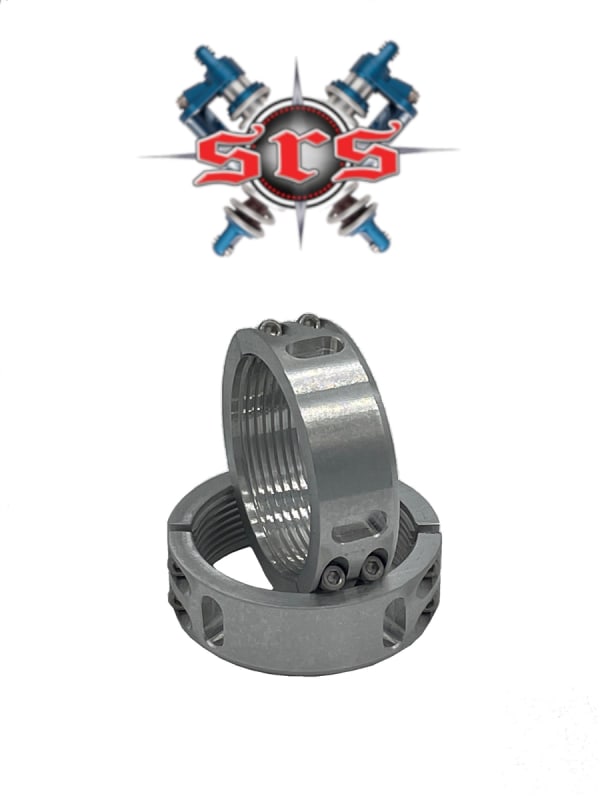

These are cross-over collars from Schmidty Racing Suspensions to convert the OEM, Walker Evans side-by-side shocks into truly adjustable dual rate shocks. These collars will thread right onto the OEM shock body without any shock modification. They allow you to adjust when to transition from both springs being active to where the shock transfers to the lower main spring alone, giving you the secondary spring rate.

Our collars are made of tough co-polymer with tight manufacturing tolerances, to give you second-to-none reliability and "quiet" operation. They also have two (2) stainless steel pinch screws to keep the collar locked in place.

  • 2.0" Crossover Collar: Only work with 2.5" (or larger) ID springs
  • 2.5" Crossover Collar: Only work with 3.0" ID springs
  • These will not fit Fox shocks

The collars are sold as a Single, Pair, or 4 Piece Kit for the Walker Evans 2.0" front and 2.5" rear shocks found on XP1000, RS-1, and XP1000 Turbo. One (1) cross-over collar needed per shock.


  • GEN 1: for 2.0" shocks ( -2017)
  • GEN 2: for 2.0" shocks (2017-current)
  • GEN 1&2: for 2.5" shocks (all years)

Average Rating: Average Rating: 5 of 5 5 of 5 Total Reviews: 1 Write a review »

  0 of 0 people found the following review helpful:
5 of 5 Crossover rings January 10, 2020
Reviewer: Joseph Mason from Hamilton, IL United States
Very well built, all edges clean and smooth.  dual lock down screws for added security against failure.  Perfect fit for the walker evans shocks.  Excellent product for a true dual rate spring system.
